Friday, February 22, 2013

Ubuntu SDK preview

Simple test of: Ubuntu SDK Preview

Tuesday, February 19, 2013

V4L2 to FrameBuffer on Raspberry-pi


In the video I used a 1.8'' TFT display: Get more information


Backstage - An interview with Eric Cartman :)


Follows a simple piece of code to forward the Webcam on the Raspberry-pi's framebuffer. The code is not perfect, in comparison to the codes found on the Web I added the conversion "YUV to RGB32 to RGB16" to support Raspberry pi's framebuffer.



Sunday, February 10, 2013

FM Radio Receiver on Raspberry-Pi

How did I do?

The system is composed by the following components:
  • Raspberry-pi
  • FM Radio Receiver - Philips tea5767 i2c module (2$)
  • 3W×2 Mini Digital power Audio Amplifier Board - pam8403
  • Speaker



Pinout


Video

Photos

Saturday, February 02, 2013

Telepresence Project

Telepresence refers to a set of technologies which allow a person to feel as if they were present, to give the appearance of being present, or to have an effect, via telerobotics, at a place other than their true location. (Wikipedia)

The Project:

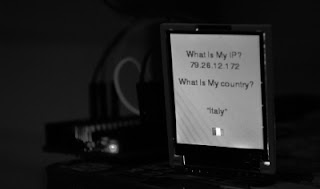

Goal: When a user logs into the system, this will communicate through an LCD, filmed by a webcam (mjpeg-Stream), information about your IP address.
Try It Now!

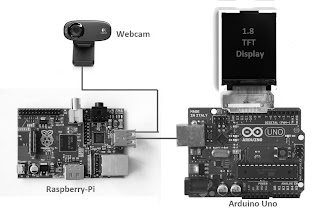

The system is composed by the following components:
  • Raspberry-pi
  • Webcam
  • Arudino Uno
  • Display LCD

Technical Details:

Raspberry Pi runs at start-up my HTTP-Server based on Qt (QHttpServer). Every time somebody connects, Server takes the ip-client and through queries to the site freegeoip it obtains information on the country of ip (also downlaods a Flag Gif).
Server generates a Bitmap to be sent over a Serial Connection to the Arduino Uno.
Ardunio Uno is connected with a SPI-module "ST7735R LCD controller chip", on which I wrote a simple firmware that converts the serial commands in 16bits-Color-Pixels on the 1.8' TFT Display.
To make the webcam stream I followed this guide Raspberrypi_mjpeg_streaming
